In the realm of machining operations, the choice of cutting tools is crucial for achieving optimal results, especially when it comes to roughing operations. As a supplier of DLC coated end mills, I am often asked whether these tools are suitable for roughing. In this blog post, I will delve into the characteristics of DLC coated end mills and explore their suitability for roughing operations.
Understanding DLC Coated End Mills
DLC, or Diamond-Like Carbon, is a type of coating that offers several advantages in machining applications. It is a hard, wear-resistant material with a low coefficient of friction, which means it can reduce cutting forces and improve chip evacuation. These properties make DLC coated end mills particularly effective in high-speed machining and applications where surface finish is important.
The DLC coating is applied to the end mill using a physical vapor deposition (PVD) process, which creates a thin, uniform layer of the coating on the tool's surface. This coating can significantly extend the tool's lifespan by protecting it from wear, oxidation, and corrosion. Additionally, the low friction coefficient of DLC reduces the heat generated during cutting, which can help prevent workpiece damage and improve the overall efficiency of the machining process.
The Requirements of Roughing Operations
Roughing operations are typically the first step in the machining process, where large amounts of material are removed from the workpiece to achieve the desired shape and size. These operations require cutting tools that can withstand high cutting forces, have good chip evacuation capabilities, and maintain their sharpness over extended periods of time.
During roughing, the cutting tool is subjected to high levels of stress and wear, as it is constantly engaged with the workpiece. Therefore, the tool must be made of a durable material and have a robust design to ensure it can handle the demands of the operation. Additionally, efficient chip evacuation is essential to prevent chip clogging, which can lead to poor surface finish, tool damage, and increased cutting forces.
Suitability of DLC Coated End Mills for Roughing
When considering the suitability of DLC coated end mills for roughing operations, several factors need to be taken into account.
1. Wear Resistance
One of the primary advantages of DLC coated end mills is their excellent wear resistance. The hard DLC coating protects the tool from abrasion and wear, allowing it to maintain its sharpness for longer periods of time. This is particularly beneficial in roughing operations, where the tool is constantly in contact with the workpiece and is subject to high levels of wear. By reducing tool wear, DLC coated end mills can reduce the frequency of tool changes, which can improve productivity and reduce machining costs.
2. Cutting Forces
The low friction coefficient of DLC reduces the cutting forces required during machining. This can be advantageous in roughing operations, as it allows the tool to cut more efficiently and with less power consumption. Lower cutting forces also reduce the stress on the tool and the workpiece, which can help prevent tool breakage and workpiece deformation.
3. Chip Evacuation
Good chip evacuation is crucial in roughing operations to prevent chip clogging and ensure a smooth cutting process. The smooth surface of the DLC coating promotes efficient chip flow, reducing the likelihood of chips getting stuck in the flutes of the end mill. This can improve the surface finish of the workpiece and reduce the risk of tool damage.
4. Material Compatibility

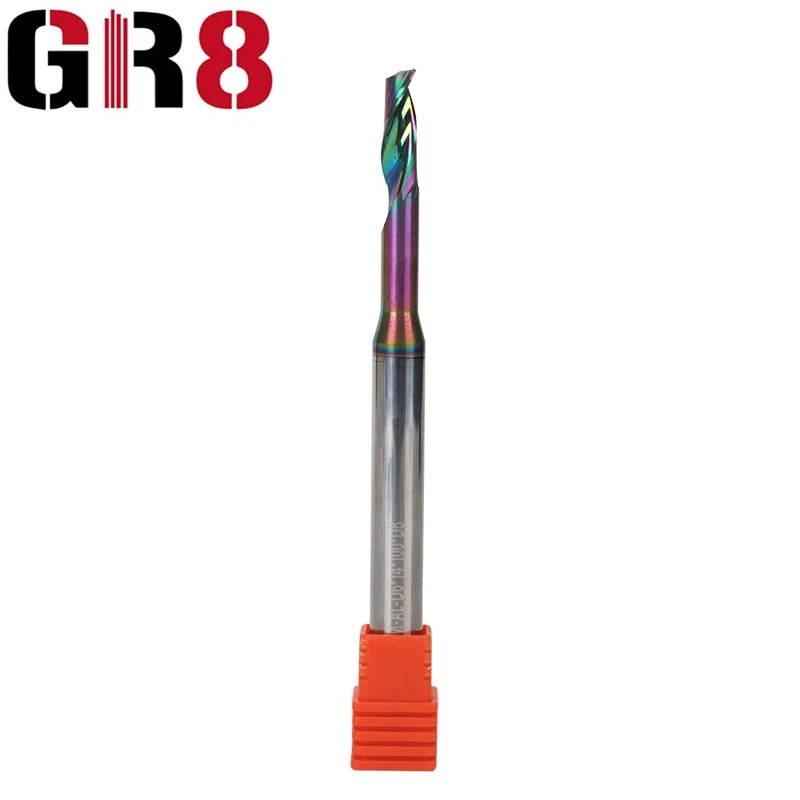

The suitability of DLC coated end mills for roughing also depends on the material being machined. DLC coatings are generally well-suited for machining non-ferrous materials such as aluminum, brass, and copper. For example, our 1 Flutes Aluminum Processing End Mill and 3 Flutes Aluminum Processing End Mill with DLC coating are designed specifically for aluminum roughing, offering excellent performance and long tool life. However, when machining ferrous materials, the performance of DLC coated end mills may be limited due to the reactivity between the coating and the iron in the material.
5. Cost Considerations
While DLC coated end mills offer many advantages, they are generally more expensive than uncoated or other coated end mills. However, when considering the long-term benefits of reduced tool wear, improved productivity, and better surface finish, the cost of using DLC coated end mills in roughing operations can be justified.
Case Studies
To illustrate the effectiveness of DLC coated end mills in roughing operations, let's look at a few case studies.
Case Study 1: Aluminum Roughing
A machining shop was using uncoated end mills for roughing aluminum parts. They were experiencing frequent tool wear, poor surface finish, and long machining times. After switching to our DLC coated 3 Flutes Aluminum Processing End Mill, they noticed a significant improvement in tool life. The DLC coating reduced the wear on the tool, allowing it to cut for longer periods without needing to be replaced. Additionally, the improved chip evacuation and reduced cutting forces resulted in a smoother surface finish and shorter machining times.
Case Study 2: Brass Roughing
Another customer was machining brass components using a standard end mill. They were facing issues with chip clogging and tool breakage. By using our DLC coated end mill, the chip evacuation improved significantly, and the low friction coefficient of the DLC coating reduced the cutting forces, preventing tool breakage. This led to increased productivity and reduced machining costs.
Conclusion
In conclusion, DLC coated end mills can be a suitable choice for roughing operations, especially when machining non-ferrous materials. Their excellent wear resistance, low friction coefficient, and good chip evacuation capabilities make them well-suited for the demands of roughing. However, it is important to consider the specific requirements of the machining operation, the material being machined, and the cost implications when choosing the right cutting tool.
If you are looking for high-quality DLC coated end mills for your roughing operations, we are here to help. Our range of DLC coated end mills, including the 1 Flutes Aluminum Processing End Mill and 3 Flutes Aluminum Processing End Mill, is designed to provide superior performance and long tool life. We also offer U Slot End Mill without Caoting for Aluminum for specific applications. Contact us today to discuss your machining needs and explore how our DLC coated end mills can improve your roughing operations.
References
- "Cutting Tool Technology" by Steve Rizvi
- "Machining Fundamentals" by John T. Black
- Industry whitepapers on DLC coatings and end mill performance
